CIDAN Trim Rollformer

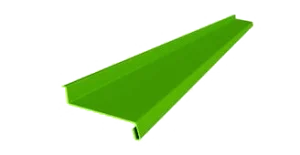

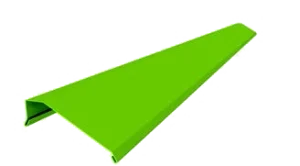

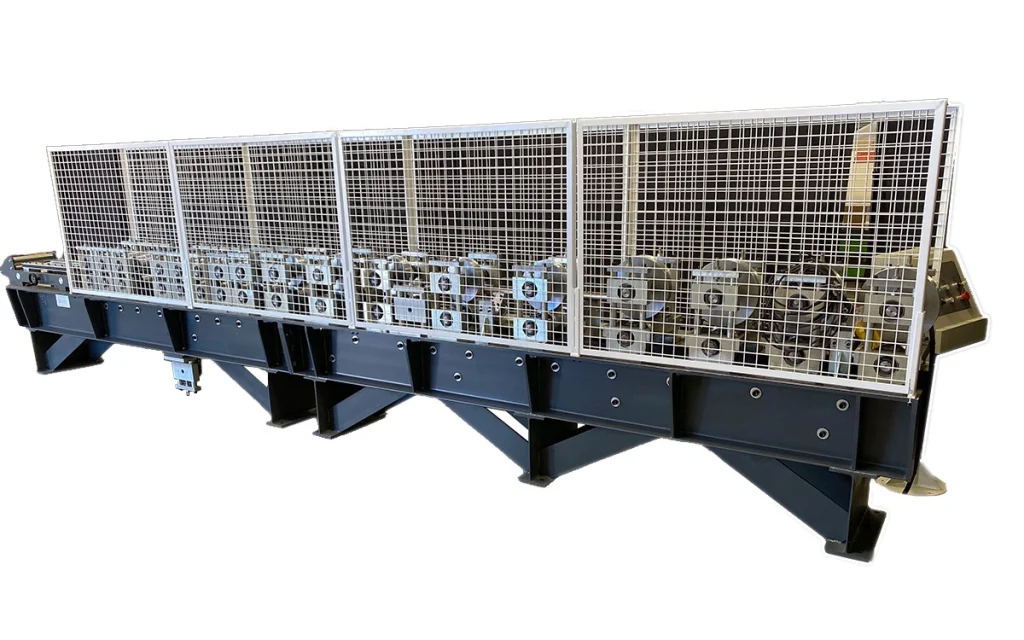

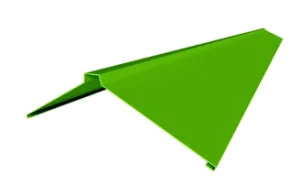

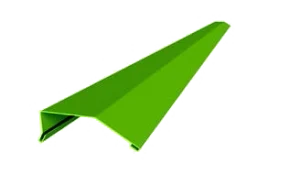

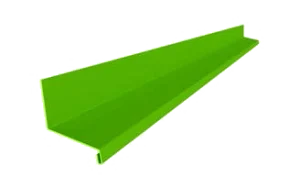

CIDAN’s Trim Rollformers are standalone machines that enable multiple trims to run simultaneously—eliminating the need for one trim to be rolled at a time. The CIDAN Trim Rollformer, a leading industrial trim rollforming machine and sheet metal trim rollforming system, delivers unmatched efficiency and rapid ROI. As a precision trim metal forming machine and high-volume trim rollforming system, it is the perfect solution for manufacturing ridge plates, gutters, end-fittings, and profiles in high volumes.
TRIM ROLLFORMER
Experience unparalleled production efficiency with the CIDAN Trim Rollformer, the leading industrial trim rollforming machine designed for high-volume manufacturing of ridge plates, gutters, end-fittings, and profiles. Engineered with robust construction, precision craftsmanship, and a user-friendly AMK control system, this sheet metal trim rollforming system processes over 650 tons of sheet metal annually with minimal operator input. Its all-electric drive guarantees quiet, clean operation, while advanced tooling delivers burr-free cuts and exceptional precision. Whether working with coils or cut-to-size sheets, this precision trim metal forming machine streamlines production, maximizes material utilization, and significantly boosts your output—providing a rapid return on investment that pays for itself in record time.
Smart advantages
- High Efficiency: Processes over 650 tons annually with speeds up to 35 meters/minute.
- Quick ROI: Pays for itself in record time with high throughput.
- Precision: Burr-free cuts and accurate feeding with adjustable rails and pinch rollers.
- Durable Design: Robust construction with hard-chromed tooling and solid 70mm shafts.
- Quiet & Clean: All-electric drive ensures quiet operation and low maintenance.
- Versatility: Handles both coils and cut-to-size sheets with customized configurations
Key advantages:
Easy infeed – Extreme Output
High throughput speed
Enormous Capacity, over 650 tons/year working single shift
Capacity
High throughput speed – 114 feet/minute – coils (35 meters per minute – coils) and 49 feet per minute – plates (15 meters per minute – plates)
Control system
50 lines
Number of stations
14 – 30
Infeed guide
The infeed has hardened roller bearing guides that ensure the material to guide perfectly into the roll stations. The infeed is fully adjustable via hand wheel on left and right side.
Front roller shear
The front roller shear allows customers to not waste material when forming the final panels of a job. The AMK Control will calculate when the rollformer needs to stop and cut the coil from the job. After the coil is cut, the rollformer will feed the final pieces forward to the post shear in the rear of the machine for final cut. The roller shear comes standard with a hold down beam for accurate straight cuts.

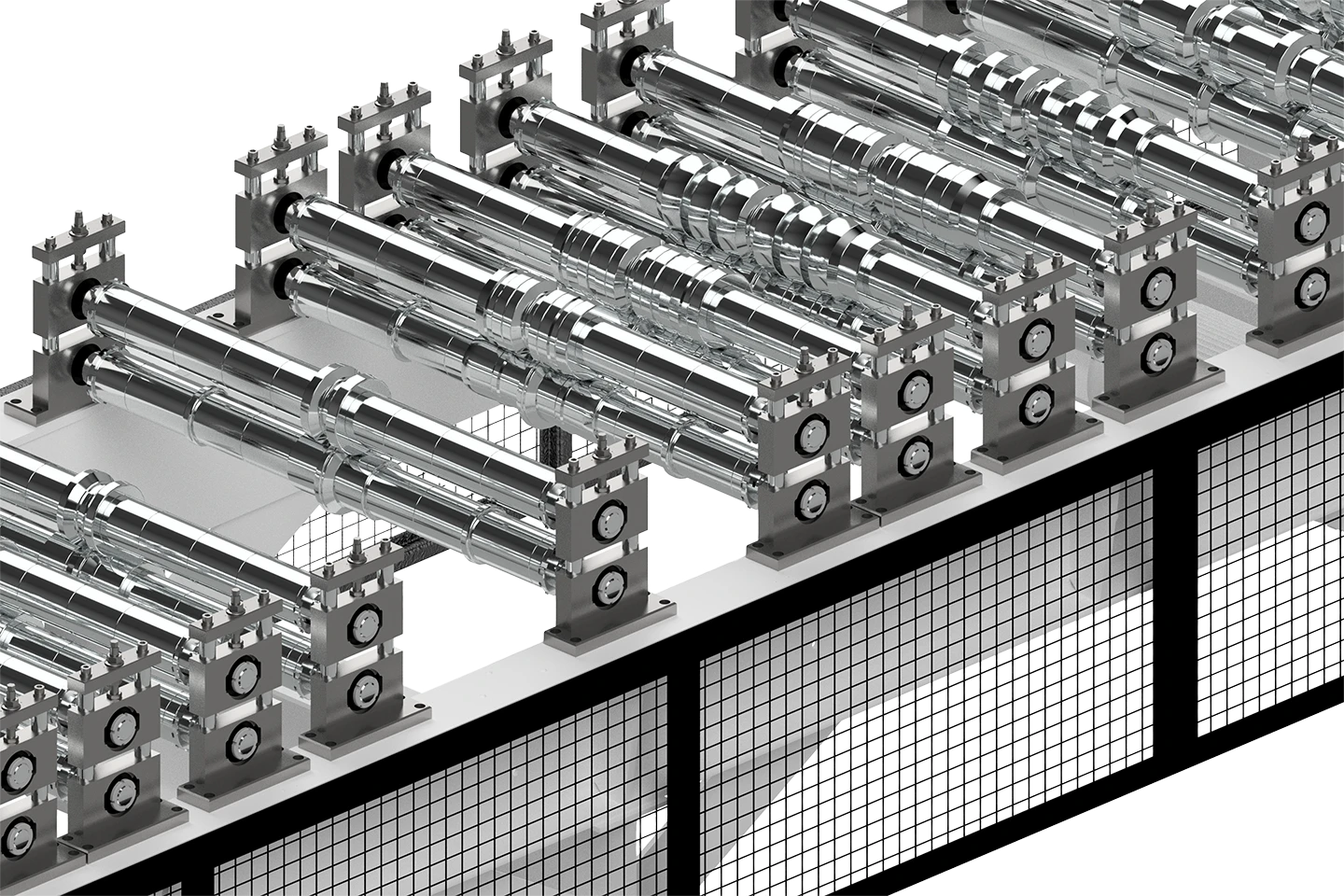

Cromed tools
To form the desired panel, there are between 14 and 30 tool stations available. The last two stations are specifically used for processing materials with thicknesses ranging from 1.46″ (37 mm) to 2.4″ (61 mm). The machine is equipped with robust 3.35″ (85 mm) shafts, and the roll formers are made of Cr45 steel with a hard chrome surface for increased durability. All tool designs are achieved using Cobra Engineering’s advanced design software.
The tool stations are height adjustable
Each tool station is equipped with an indicator showing the tool height, which simplifies the process of adjusting for different material thicknesses.

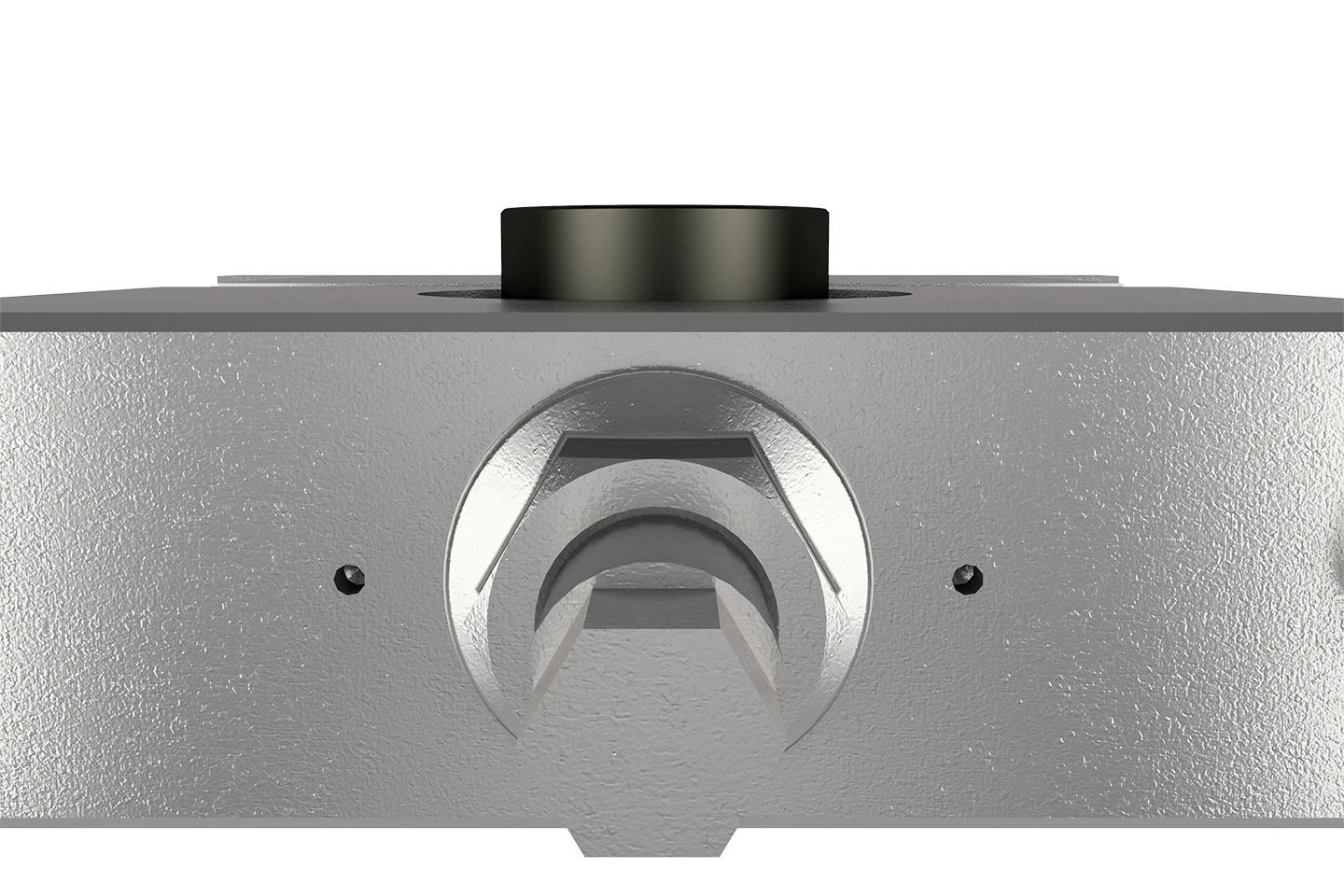

Encapsulated bearings
The rotational bearings in which the shafts are mounted are encapsulated, allowing for smooth transmission of power from the drive system.
Rubber pinch roller
Rubber Pinch Roller insures coil is constantly feeding into the rollformer without slipping or misaligning thru the roll stations.
OPTION
Stacker
Stack the finished parts on an stacker. Available in different lenghts with a capacity of up to 7716 lbs (3500 kg).
OPTION
CNC Cut-to-length
We offer also a CNC Cut-to-length on top of rollformer with run out supports.
OPTION
Rollout safety
Rollout safety cages in lieu of quick change side cages.
Post shear
The Electric Post Shear is guided by 4 bearing shafts for burr free cutting of the panel. The post shear enables you to cut from small 3.94″ (100 mm) long panels, up to 60 feet (18.3 m). The electric motor allows for maintenance-free running at high-efficiency energy savings. The post shear has a spring-loaded hold down, to stabilize the panel during the cutting process.
Discover the smart planning tool for sheet metal profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical specifications
| Model | WIDE |
|---|---|
| AMK control system | 50 lines |
| Hydraulic guillotine shear | 4 bearing shafts |
| Capacity range | 4″ (100 mm) – 720″ (18.3 m) |
| Stations | 14 – 30 |
| Solid keyed shafts | 3.375″ (85 mm) |
