STACKMASTER
CIDAN STACKMASTER optimizes your sheet metal storage with up to 20 shelves. The integrated control system monitors and logs the sheet’s format, quality, and colour in stock. With touchscreen selection, STACKMASTER automatically delivers the desired material, facilitating further processing. Ideal for both purchasers of pre-cut sheet metal and those who create their own dimensions and qualities for their sheet metal via their cutting line.
STACKMASTER
CIDAN STACKMASTER – flat sheet storage. Stackmaster meets your needs in 10, 15 or 20 tray high storage. The control system keeps track of different sizes, qualities and colors stored in the different trays. Choose desired material via the control panel and STACKMASTER delivers correct material. Then you just easily move the sheet to next working operation. Works perfectly well for them who only buys already cut flat sheets as well as for those who produces own flat sheets with a cut-to-length line.
The CIDAN Stackmaster metal sheet storage gives you a good overview of your flat sheets inventory!
The key advantages are
- Enables high utilization of your production area.
- Enables efficient just-in-time production.
- Less forklift movements over the shop floor, space & labor saving.
The key advantages are
Creates order and tidiness.
Saves space.
Reduces heavy lifting.
Capacity
STACKMASTER makes your sheet metal storage smooth and clear.
Material width
59″ to 125″
1500 – 3200 mm
Number of shelves
10, 15 up
to 20
Feeding speed per shelf
29′ / min
9 m/min
Up to 20 shelves
STACKMASTER is available in three different designs with 10, 15 or 20 shelves. Each shelf can store 2205 lbs (1000 kg). The smallets model can store 19375 sq ft (1800 m2) 0,7 mm sheet on just over 215 sq ft (20 m2) floor space. STACKMASTER is also available in a heavier version with 10 or 15 shelves, were each shelf can store 4409 lbs (2000 kg) flat sheet.
Two motors
The tray transport drive system has 2 motors, one 6.7 hp (5 kW) motor to power the lifting of trays, and one 2.0 hp (1.5 kW) motor to power the sheet tray in and out of the STACKMASTER. The lifting drive is a dual rack and pinion design. While the sheet tray movement work with a sprocket and dual chain drive. A frequency drive insures smooth transmission of 32.8 ft/min (10 m/min) of lifting speed.

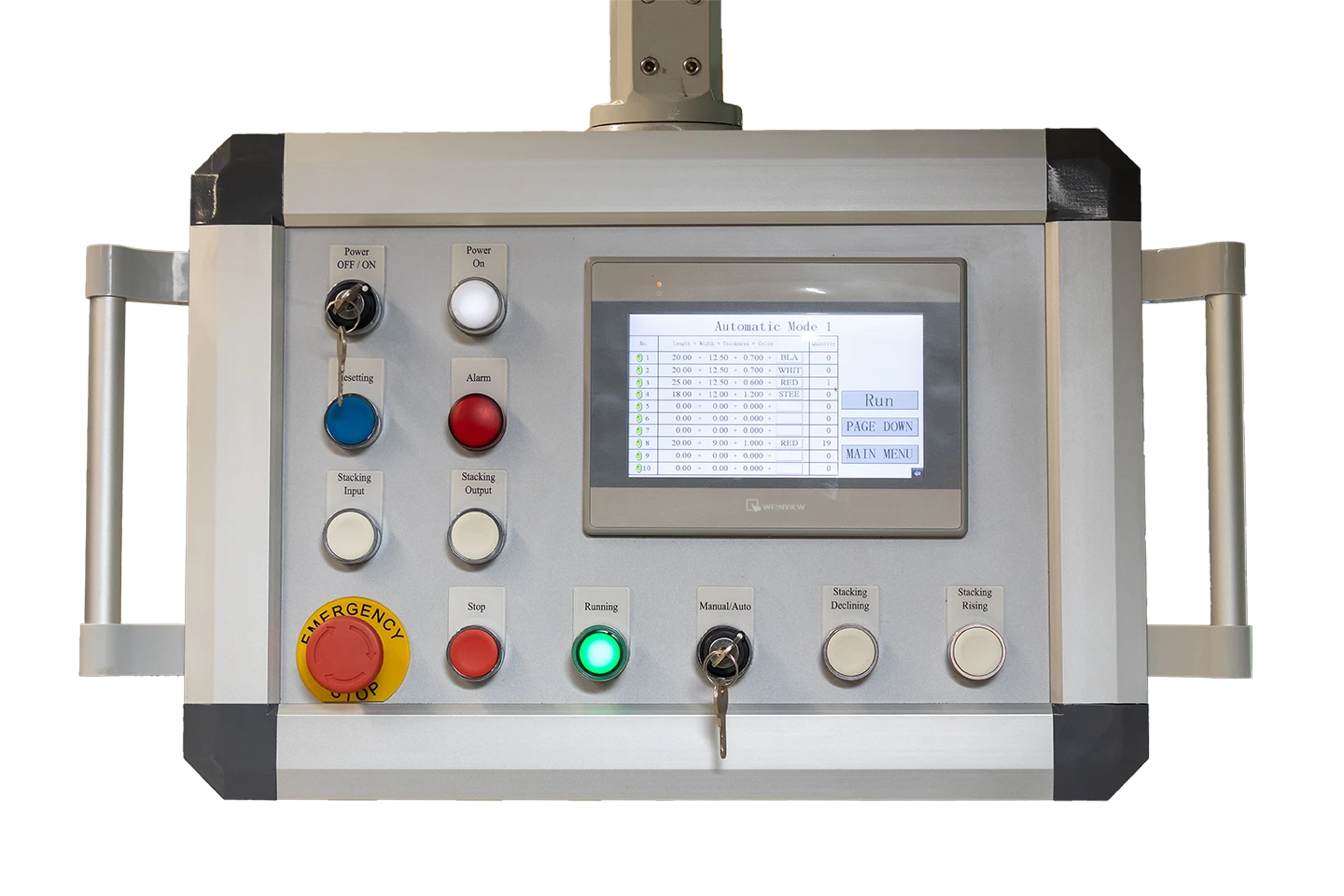

User friendly control system

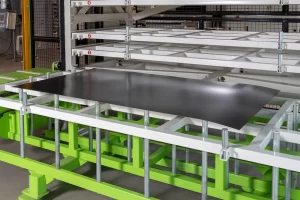

The control on the STACKMASTER enables an operator to load sheets with an inventory count. The control keeps track of the count based on what the operator request from each tray. In Automatic mode, you can either Extract or Store a tray in a desired position.
OPTION
Up to 20 shelves
OPTION
Max 4409 lbs (2000 kg) per shelf
OPTION
Up to 14.4 ft (4400 mm) long sheets
OPTION
Creates better structure of flat sheets
OPTION
Eliminates heavy lifting
Discover the smart planning tool for sheet metal profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical specifications
| Model | RFT-3200 1500/10 | RFT-3200 1500/15 | RTF-3200 1500/20 | RTF-3200 1500/10 2T | RTF-3200 1500/15 2T |
|---|---|---|---|---|---|
| Max load per shelf | 2205 lbs (1000 kg) | 2205 lbs (1000 kg) | 2205 lbs (1000 kg) | 4409 lbs (2000 kg) | 4409 lbs (2000 kg) |
| Number of shelves | 10 | 15 | 20 | 10 | 15 |
| Max sheet size | 59″ x 126″ 1500 x 3200 mm | 59″ x 126″ 1500 x 3200 mm | 59″ x 126″ 1500 x 3200 mm | 59″ x 126″ 1500 x 3200 mm | 59″ x 126″ 1500 x 3200 mm |
| Max loading height per shelf | 3.94″ (100 mm) | 3.94″ (100 mm) | 3.94″ (100 mm) | 4.72″ (120 mm) | 4.72″ (120 mm) |
| Height | 126″ (3200 mm) | 165″ (4200 mm) | 205″ (5200 mm) | 142.5″ (3620 mm) | 189.7″ (4820 mm) |
| Length | 141.7″ (3600 mm) / 275.5″ (7000 mm) (DUO) | 3141.7″ (3600 mm) / 275.5″ (7000 mm) (DUO) | 141.7″ (3600 mm) / 275.5″ (7000 mm) (DUO) | 141.7″ (3600 mm) / 275.5″ (7000 mm) (DUO) | 141.7″ (3600 mm) / 275.5″ (7000 mm) (DUO) |
| Depth | 181.1″ (4600 mm) | 181.1″ (4600 mm) | 181.1″ (4600 mm) | 181.1″ (4600 mm) | 181.1″ (4600 mm) |
Discover Our Smart Solutions in Action
Explore how CIDAN’s machines perform in production. Each video highlights key features designed to make your sheet metal processing faster, smarter, and more efficient. Get inspired, see the difference – and imagine what’s possible for your business.
CIDAN Stackmaster – Plattenlager
Stackmaster

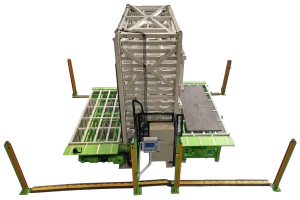

CIDAN Stackmaster – Dual Side Option
